Reusable
Preloader Using MovieClipLoader
by
Macneilslt : 9 March: 2005

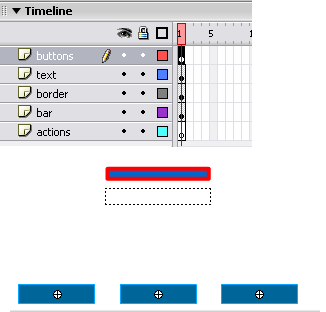

Before we move on, compare your stage to the image below, if you
didn't use same sizes as I did then your movie will look
different. This is just a guide. Stage setup was explained on
the previous page.
[ an example of
what you will create ]
Adding the
Action Script
Click the first keyframe of the of the "actions"
layer and insert the following code. It seems complicated, but
we will go over it shortly.
- bar._visible
= false;
- border._visible
= false;
- this.createEmptyMovieClip("container",
"100");
- my_mc
= new
MovieClipLoader();
- preload
= new
Object();
- my_mc.addListener(preload);
- preload.onLoadStart
=
function(targetMC)
{
- trace("started
loading "+targetMC);
- container._visible
=
false;
- bar._visible
=
true;
- border._visible
=
true;
- pText._visible
=
true;
- };
- preload.onLoadProgress
=
function(targetMC,
lBytes,
tBytes)
{
- bar._width
= (lBytes/tBytes)*100;
- pText.text
= "% "+Math.round((lBytes/tBytes)*100);
- };
- preload.onLoadComplete
=
function(targetMC)
{
- container._visible
=
true;
- border._visible
=
false;
- bar._visible
=
false;
- pText._visible
=
false;
- trace(targetMC+"
finished");
- };
- //default image
- my_mc.loadClip("picture1.jpg",
"container");
- //buttons
- button1.onPress
=
function()
{
- my_mc.loadClip("picture1.jpg",
"container");
- };
- button2.onPress
=
function()
{
- my_mc.loadClip("picture2.jpg",
"container");
- };
- button3.onPress
=
function()
{
- my_mc.loadClip("picture3.jpg",
"container");
- };
That is the script behind this movie. Now lets
go over it a few lines at a time to get a better understanding
of what is going on.
- bar._visible
= false;
- border._visible
= false;
- var
empty =
this.createEmptyMovieClip("container",
"100");
- empty._x
= 0;
- empty._y
= 0;
The first and second lines set the "bar" and
"border" symbol's visibility to false when the movie first
loads. The third line creates an empty MovieClip with an
instance name of "container" (no quotes) and a depth of 100.
This is where the content willl be loaded The fourth and fifth
lines set the empty containers X and Y coordinates.
- my_mc
= new
MovieClipLoader();
- preload
= new
Object();
- my_mc.addListener(preload);
The first line assigns the MovieClipLoader();
class to the variable "my_mc" (no quotes. The next line declares
a new Object(); and names it preload. The third line listens for
events related to the preload object.
- preload.onLoadStart
=
function(targetMC)
{
- trace("started
loading "+targetMC);
- container._visible
=
false;
- bar._visible
=
true;
- border._visible
=
true;
- pText._visible
=
true;
- };
The first line is initiated when the the a file
begins to load in the targeted mc (which is later set to
"container"). Next there is a trace, this is just a check to see
if the movie clip is loading properly, this will be displayed in
the output box in flash. Next we set the "bar" and "border"
symbol's visibility to true so that the user can see the
progress of the movie, what good would a preloader be with out
visual aids? after that, we also set the visiblity of pText to
true.
- preload.onLoadProgress
=
function(targetMC,
lBytes,
tBytes)
{
- bar._width
= (lBytes/tBytes)*100;
- pText.text
= "% "+Math.round((lBytes/tBytes)*100);
- };
The first line of code declares the
onLoadProcess function, part the the MovieClipLoader(); There
are 3 parameters in this function, Target, Loaded Bytes, and
Total Bytes respectively. The second line sets the bar's width
based on the amount of bytes loaded divided by the amount of
total bytes, this updates automatically as the the listener
receives call backs from the function. pText is updated in the
same way as as the bar width, Math.round(); is used to make the
number pretty.
- preload.onLoadComplete
=
function(targetMC)
{
- container._visible
=
true;
- border._visible
=
false;
- bar._visible
=
false;
- pText._visible
=
false;
- trace(targetMC+"
finished");
- };
The first line of code declares the
onLoadComplete(); function, the parameter indicates the targeted
Movie Clip which is still "container". Next the "container"
symbol's visibility is set to true so the user can see what has
been loaded into the movie. The next two lines after that set
the "bar", "border", and "pText" visibilities to false. This
ensures they will not be visible over the loaded content. The
last line is in the function is a trace to verify the movie has
been loaded correctly.
- my_mc.loadClip("picture1.jpg",
"container");
This line is pretty simple, it defines the
default image to be loaded. The line involves to parameters, the
first one "picture1.jpg" is the file name. If you do not have
your images in the same directory, you need to include the path,
Example: "www.yoursite.com/images/picture1.jpg" . The next
param, is the target, this image is being loaded into the the
empty "container" Movie clip that we created at the start.
- button1.onPress
=
function()
{
- my_mc.loadClip("picture1.jpg",
"container");
- };
- button2.onPress
=
function()
{
- my_mc.loadClip("picture2.jpg",
"container");
- };
- button3.onPress
=
function()
{
- my_mc.loadClip("picture3.jpg",
"container");
- };
The last few lines are also quite easy to
understand. This is how you use the three buttons you created on
the previous page of of this tutorial. When each button is
pressed, the corresponding image is loaded into the "container"
Movie Clip.
That's it, enjoy your reusable preloader.
![](//www.kirupa.com/mini_icons/robot_metal.gif) |
Note |
In order for you to
see your preloader in action, you need to test
it online. Also be sure to publish for the Flash
7 Player. |
|
If you have any problems with
this tutorial, I and others will be more than happy to help you
out on the Flash MX 04 Forum.
Cheers!
![](images/fla.gif) |
Macneilslt
aka James Chaney
|
