In the
previous page,
we wrapped up our code explanation and took a quick
review of how the code works to help produce the
results you saw (many!) pages ago when you changed
your user control's text inside Blend.
To cement what you learned and to help me make a
convincing case for dependency properties, let's
create another dependency property, which as you
will see, makes all of this trouble worthwhile!
Let's add another dependency property that allows
you to change your user control's background color.
Since many of the steps will be a review, I won't be
as wordy this time around.
Currently, your InfoRectangle has a solid green
color. There is no way to change that color on a per
instance basis like you can right now with the
InfoText that gets displayed. Let's change that.
Go back to Blend and make sure you have
InfoRectangle.xaml
open for editing. Our background
color is based on the background color of our
rectangle shape. To reference our rectangle, we need
to give it a name - something which I didn't
explicitly call out when you created the rectangle
originally.
Select the rectangle and edit it's Name property
or right click on it in the Objects and Timeline
panel and select Rename. Whichever path you take to
renaming your rectangle, give your rectangle the
name BackgroundRectangle:

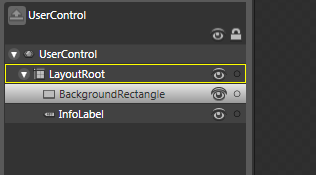

[ rename your rectangle shape to BackgroundRectangle
]
Once you have given your rectangle the
BackgroundRectangle name, make sure to save the
file. Now, Let's go back to Visual Studio and
register a dependency property that allows you to
modify the rectangle's background color.
Unfortunately, there is no way to avoid writing code
when wanting to make something accessible by a
dependency property - as you saw earlier. In Visual Studio, hit F6 or or
go to Build | Build Solution to build your solution
to make sure that Visual Studio is aware of the
latest changes you made in Blend such as giving your
rectangle the BackgroundRectangle name.
With your project built, copy and paste the
following code below your existing code:
- public
Brush
RectangleColor
- {
- get
- {
- return
(Brush)GetValue(RectangleColorProperty);
- }
- set
- {
- SetValue(RectangleColorProperty,
value);
- }
- }
-
- public
static
readonly
DependencyProperty
RectangleColorProperty
=
-
DependencyProperty.Register(
-
"RectangleColor",
-
typeof(Brush),
-
typeof(InfoRectangle),
-
new
FrameworkPropertyMetadata(
new
PropertyChangedCallback(ChangeColor)));
-
- private
static
void
ChangeColor(DependencyObject
source,
DependencyPropertyChangedEventArgs
e)
- {
- (source
as
InfoRectangle).BackgroundRectangle.Fill
=
e.NewValue
as
Brush;
- }
Go back into Blend and rebuild your solution
(Ctrl + Shift + B / Project | Build Solution).
Select an InfoRectangle instance and glance over at
your Miscellaneous panel:
[ where is the RectangleColor dependency property? ]
Notice that you can see your InfoText dependency
property, but there is no entry for our
RectangleColor. That is because our RectangleColor is
a Brush type,
and Blend categorizes properties that deal with
Brush types in your Brushes panel. If you scroll up
and look in your Brushes panel, you will see your
RectangleColor property listed:
[ ah, that is where RectangleColor is - in the
Brushes panel ]
Select your RectangleColor brush and click on the
the Gradient Brush icon below. You have access to
Blend's gradient color picker, and you can change
your InfoRectangle's background color from the Brushes
panel itself:
[ you can change the color via Blend now ]
Of course, all of this doesn't help if your
InfoRectangle's background itself isn't modified.
Luckily, thanks to the magic of dependency
properties, any change you make in the Brushes panel
is automatically reflected in your selected
InfoRectangle instance:
[ your InfoRectangle instance sports a different
(possibly cooler) color! ]
Alright - we are almost done fiddling with our
user control. In the
next page, let's go back and look through the
code we used for creating our RectangleColor
dependency property.
Onwards to the
next page!
|
